AeroSpreader S125

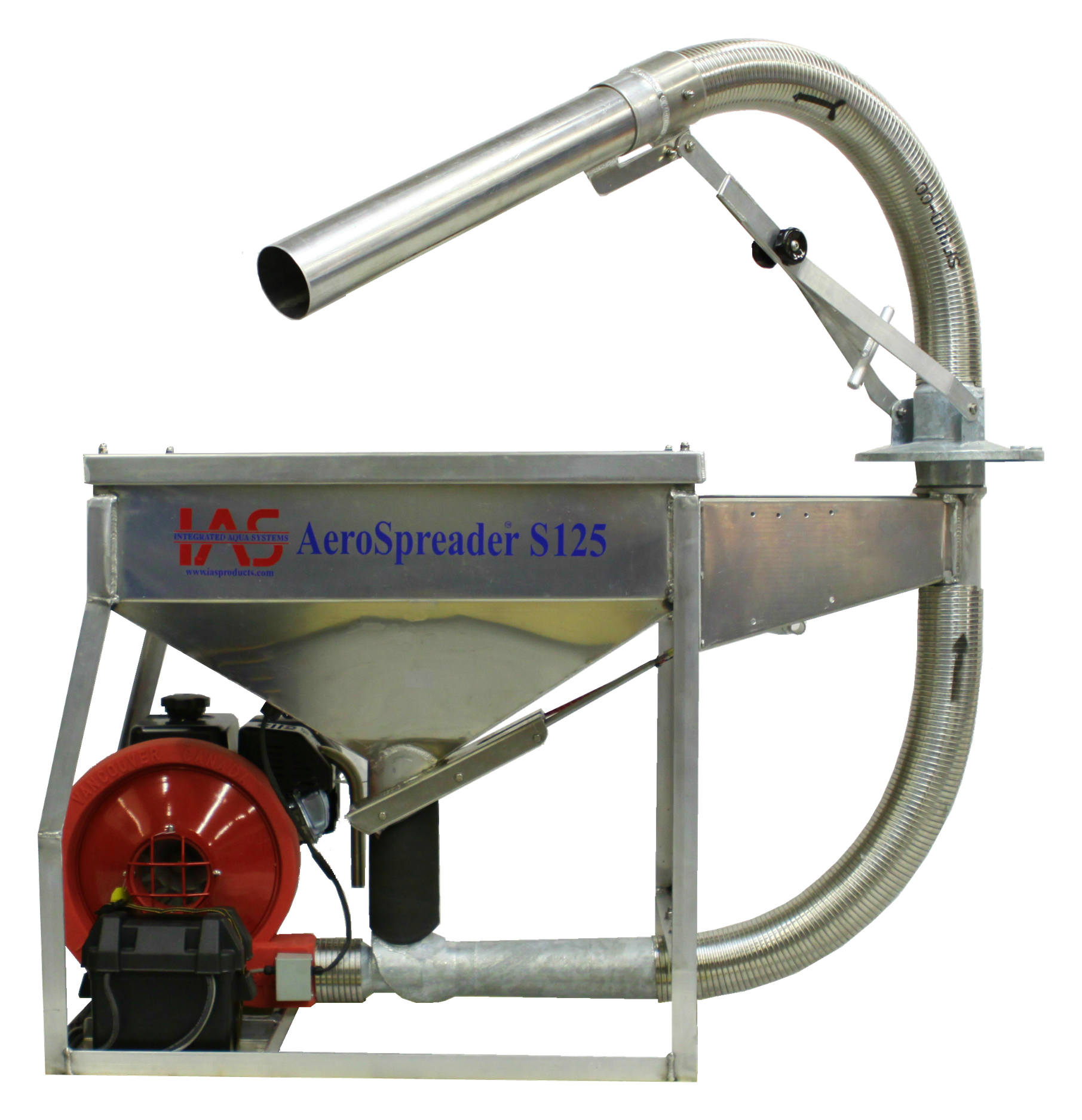

AeroSpreader S125 is a compact pneumatic broadcaster for dry aquaculture feed pellets, with a nominal 125 kg marine-aluminum hopper and a direct-drive AB135 blower. Select the available broadcast head, controls and mobility for the feeding location. Feed rate and coverage depend on pellet properties and the selected arrangement. Equipment is included only as listed in the quotation.
Explore the machine
Images show representative equipment. Your selected options define the offering.
Your machine, your setup
Configure your machine
Choose your setup. Only compatible options are shown.
Configuration selected
Your configuration 11
- Hopper Capacity
- 125 kg
Choose the 125 kg hopper configuration to match the feed capacity and installation layout required for your operation.
- Fuel
- Gas
- Periscope
- None
- Outlet Size
- 3"
- Metering
- Manual
- Engine
- AB135 Electric Start 6.5HP
Pair the AB135 blower with a 6.5 hp engine and electric starting for convenient start-up at the machine.
- Broadcast
- 4" SS Flex Handheld Hose
Use a 4-inch stainless-steel flexible handheld hose for operator-directed feed placement.
- Control Type
- Cable Controls
Use cable-operated feeding controls to position the controls at a practical operator viewing location.
- Mobility
- Stationary Skid 125
Choose the stationary mounting configuration for a fixed installation on the intended platform, vessel or site.
- Rotate Motor
- No Rotate Motor
- Extension Tube
- No Extension Tube
Make it work for you
Other available options
Compare compatible alternatives. Choose an option to update your configuration.
Periscope
Automatic
Outlet Size
4"
Outlet Size
5"
Broadcast
4" Manual Periscope Feed Head
Choose a 4-inch manual periscope feed head for direct operator control of discharge direction.
Broadcast
4" Oscillating Periscope Feed Head
Choose a 4-inch oscillating periscope feed head for an automatic sweep of the discharge direction, reducing continuous manual aiming.
Control Type
Extended Controls 12ft/3.7m
Use extended controls 12ft/3.7m to position feeding controls farther from the machine, where the operator can observe the feeding area.
Mobility
Mobile Pull Handle 2-wheel + lift bar 125
Choose the two-wheel configuration with lift bar for manually repositioning the machine around the feeding area.
Mobility
Mobile Trailer 125
Choose the trailer configuration for moving the machine between feeding locations with suitable towing equipment.
Rotate Motor
Rotate Motor 125 1C
Extension Tube
4" Extension Tube
Know the details
Specifications & capabilities
Explore the product information available for your selected setup.
Engineered details
Features
Designed for commercial aquaculture operations that need high-throughput dry-feed broadcasting in a compact platform, the AeroSpreader S125 combines a 125 kg hopper, direct-drive Aerite AB135 blower and configurable delivery, control and mobility options. The features below are tailored to the selected S125 configuration.
AeroFLOW gentle feed transport
AeroFLOW optimizes gentle, air-driven feed transport for reliable, consistent delivery while protecting pellets from damage. Airflow is matched to the feed, route and equipment configuration.
Compact 125 kg hopper
A low-profile marine-grade aluminum hopper carries 125 kg (276 lb) of dry feed while keeping the S125 compact and easy to load.
Direct-drive Aerite AB135 blower
The 6.5 HP Honda engine directly drives the AB135 centrifugal blower, avoiding belt and pulley adjustments.
Pellet-protective feed path
Smooth internal surfaces and the proprietary feed eductor are designed to minimize trapped, damaged or broken pellets during broadcasting.
Marine-oriented construction
Marine-grade aluminum, galvanized steel and stainless steel hardware support dependable use in demanding aquaculture environments.
Electric-start Honda power
A 4.8 kW (6.5 HP) Honda gasoline engine with low-oil alert and electric start provides self-contained field operation.
Lined stainless handheld hose
The 4-inch lined stainless steel flex hose gives the operator direct control of feed direction and placement.
Technical overview
Specifications
Technical details for the selected configuration. Feed performance, dimensions and empty weight depend on the chosen equipment and operating conditions.
Hopper capacity
125 kg / 276 lb of dry feed.
Feed pellet size
2 to 11 mm dry feed pellets.
Maximum broadcast rate
Feed rate and broadcast distance depend on pellet size, shape and density, blower, eductor, hose and outlet arrangement. Confirm performance for the selected configuration and feed.
Broadcast range
Feed rate and broadcast distance depend on pellet size, shape and density, blower, eductor, hose and outlet arrangement. Confirm performance for the selected configuration and feed.
Power source
4.8 kW / 6.5 HP Honda gasoline engine with low-oil alert and electric start.
Construction
Marine-grade aluminum, galvanized steel and stainless steel hardware.
Broadcast outlet
4-inch / 102 mm feed-delivery system matched to the selected handheld or periscope head.
Stationary dimensions and tare
Dimensions and empty weight depend on the hopper, mobility and accessories. Use the configured equipment drawing and confirmed tare weight for installation and transport planning.
Origin
Designed and manufactured in Canada.
Why it matters
Benefits
The S125 is built to help farms place feed efficiently, reduce handling effort and adapt one broadcaster to different operating layouts. The benefits shown below reflect the chosen hose, control and mobility options so customers see the operational value of their actual configuration.
Complete feeding rounds faster
High delivery capacity lets crews move feed efficiently while retaining control of rate and placement.
Place feed where fish are feeding
Directional broadcasting helps distribute feed across the target area, which can reduce crowding and improve access to feed.
Reduce routine drive maintenance
The direct-drive blower eliminates belt and pulley adjustment from routine service.
Protect feed quality
Smooth passages, a lined hose and the IAS feed eductor are designed to limit pellet abrasion and breakage.
Direct handheld placement
The flexible handheld hose lets the operator react immediately to changing feeding activity and direct feed to selected areas.
Compact fixed installation
The stationary skid provides the smallest S125 footprint for docks, vessels, trucks or dedicated feeding positions.
